Product Description
Motion4 EvoDrive+

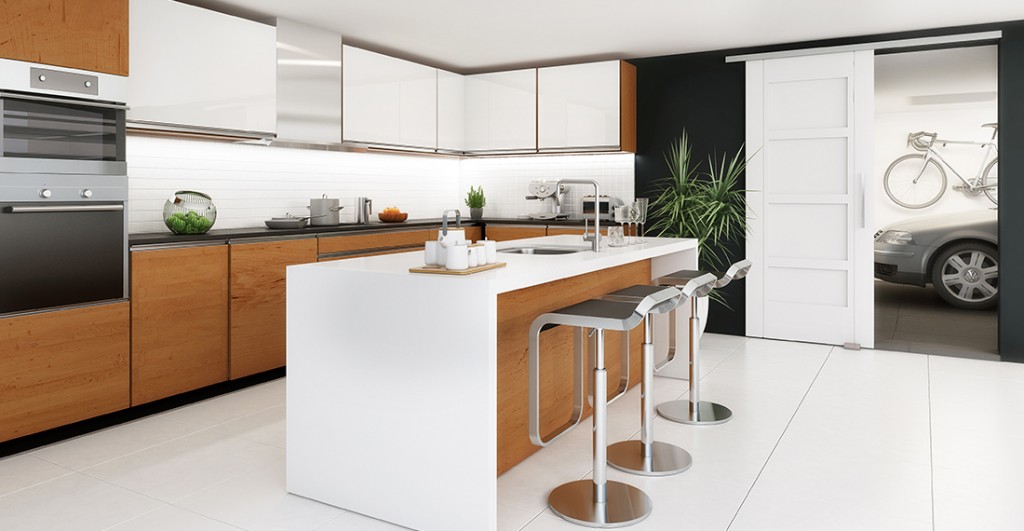

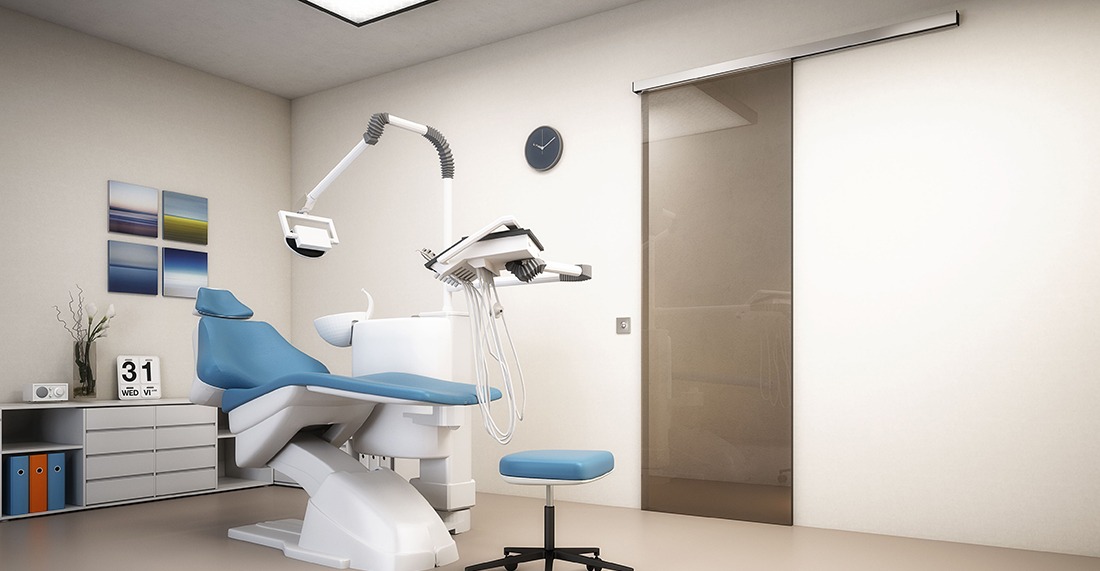

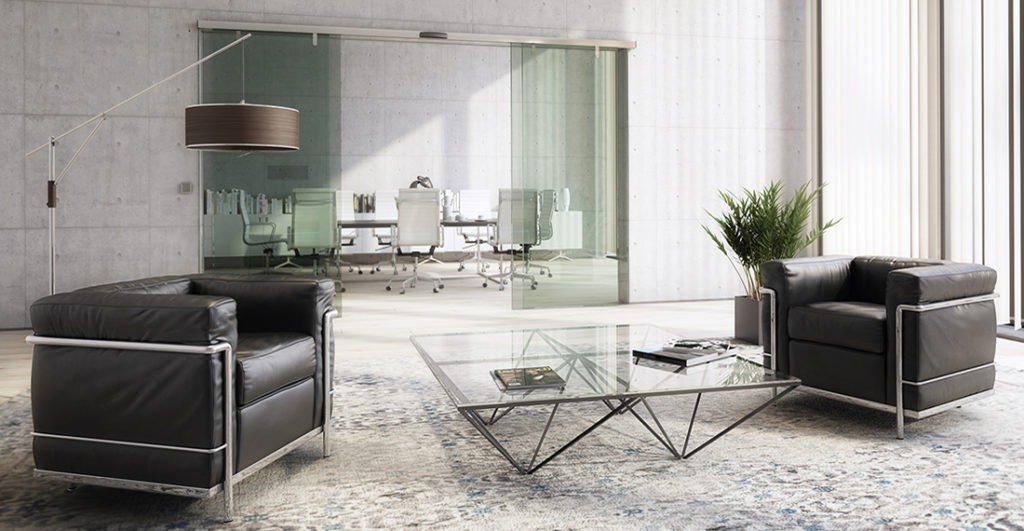

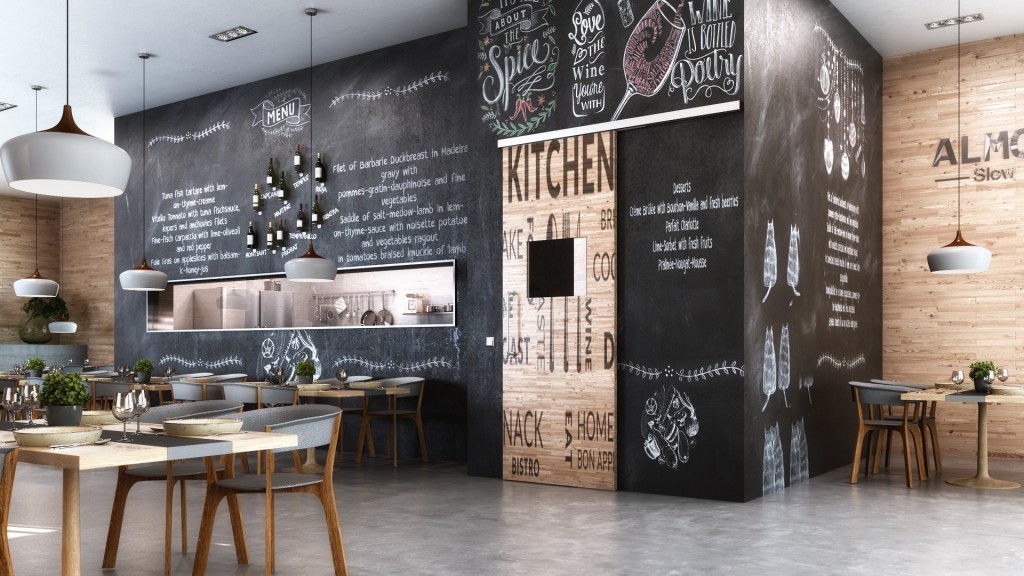

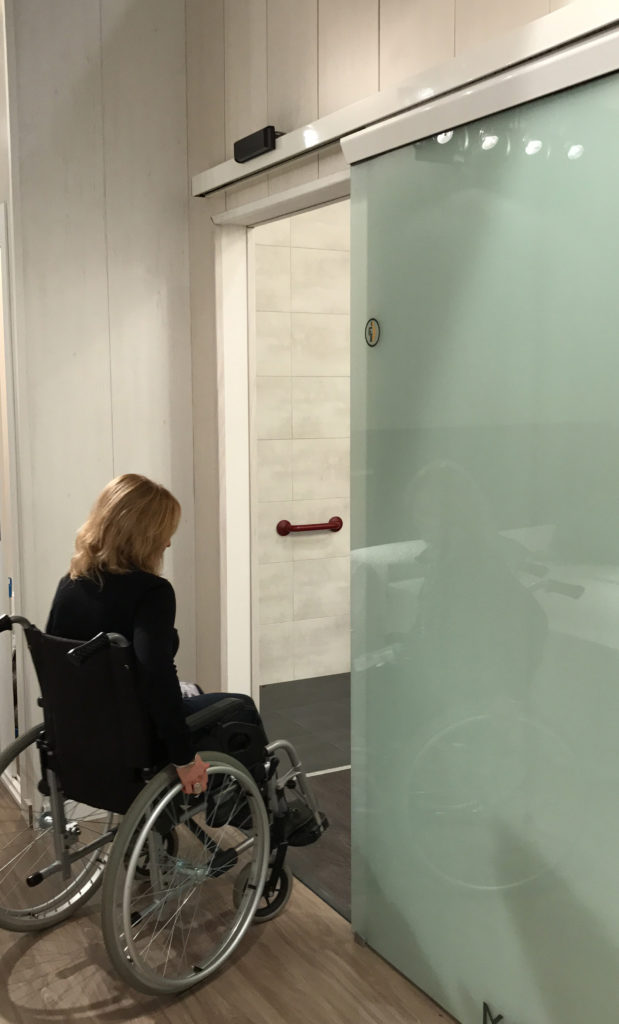

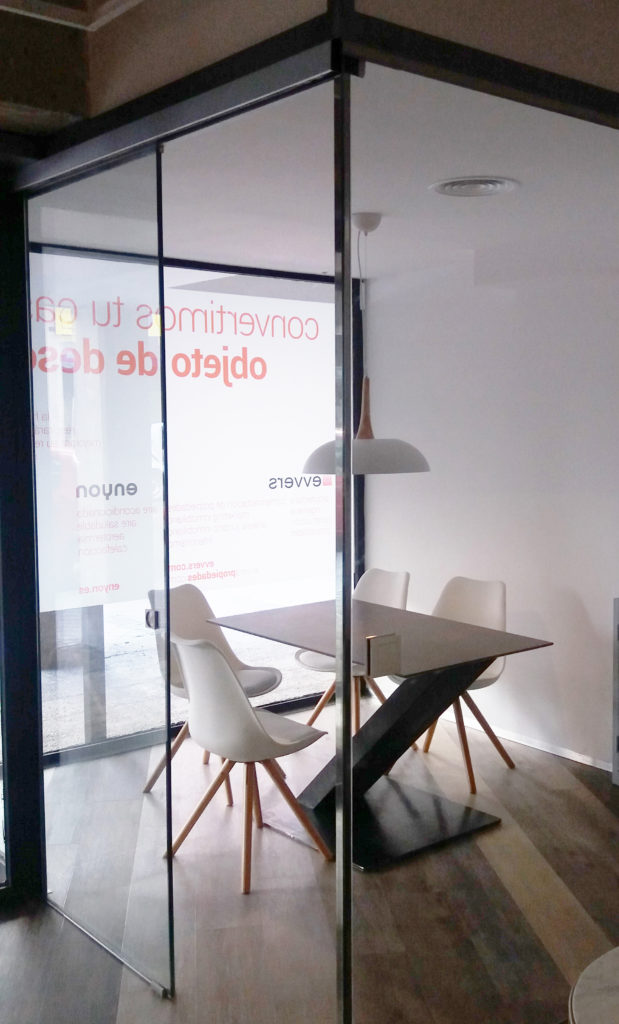

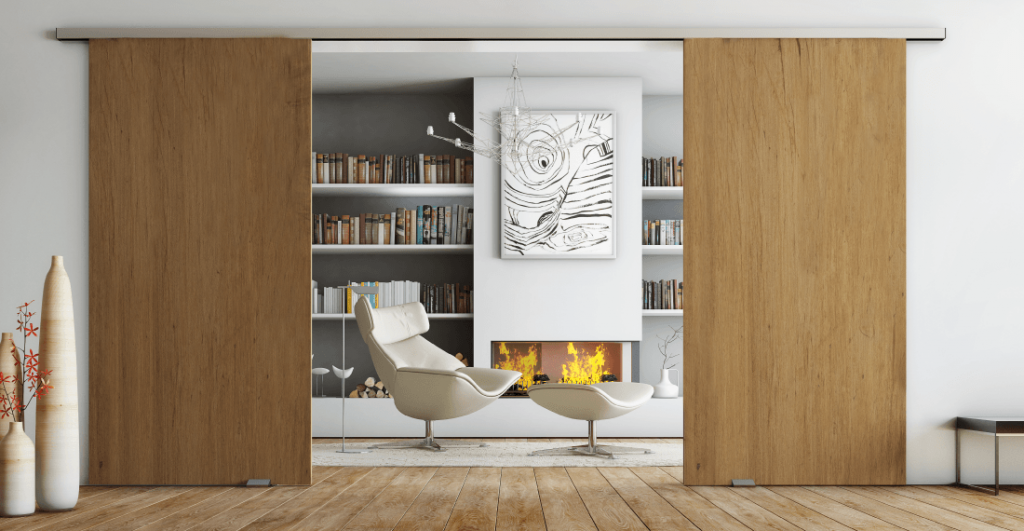

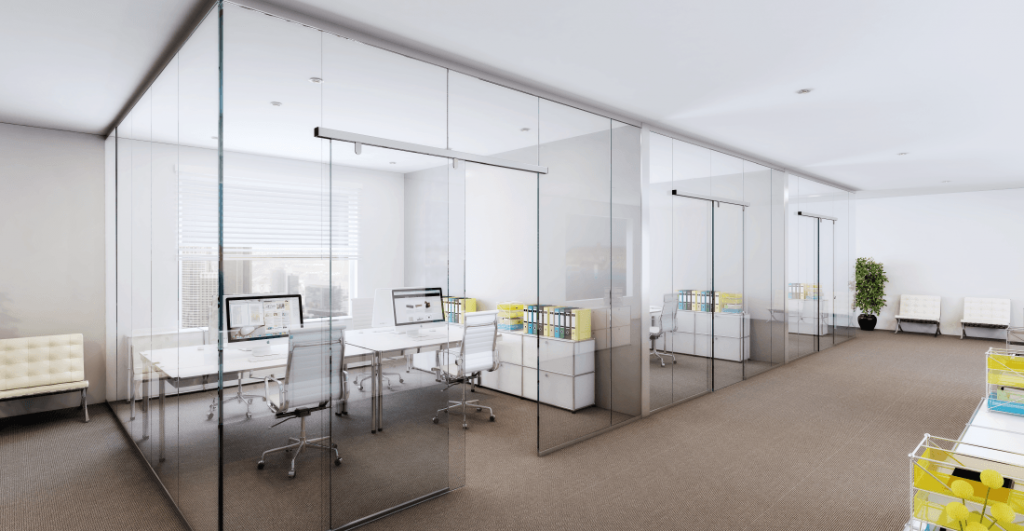

The EvoDrive+ is a compact and elegant automatic door operator specifically designed for internal sliding doors commonly used in hotels, offices, private homes, care homes, hospitals, and other types of buildings..

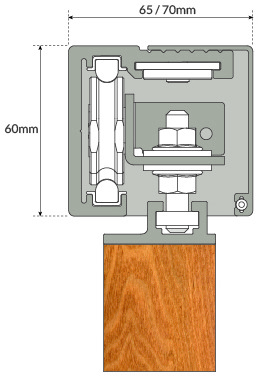

Powered by the innovative magnetic linear motor technology developed by MOTION4, it measures only 60 mm high x 70 mm deep, combining the size of a manual sliding door track with the functions and performance of a traditional automatic door operator. Fully compliant with the latest EN16005 regulations.
Thanks to its smart design, all the internal elements are easily accessible by simply pulling the front cover down, to ease maintenance. It incorporates wireless technology to communicate the mainboard with the motor, to avoid the use of cables, wires, and other mechanical elements for a simple installation and reliable performance.
Main Technical Features
- Compact aluminium housing: only 60×70 mm.
- Minimum clear opening: 700 mm. Track length: 1450 mm.
- Maximum clear opening: 1400mm Track length: 2850 mm.
- Leaf weight up to 80 Kg.
- Low operating noise: <50 dB.
- Electric three phase AC motor type LSMPM – Linear Synchronous Motor with Permanent Magnets.
Electronic Specification
- Operated by Microcontroller (MCU).
- Wireless communication
- 4 operating modes: – Automatic – Open – Close or Close/Lock (with optional auto lock) – Exit Only / Access control
- Adjustable parameters: – Push & go – Opening direction: right or left – “Low energy” or normal mode
